HMS Alliance P-417 / S-67
Robert Edmonds Collection
Page 2

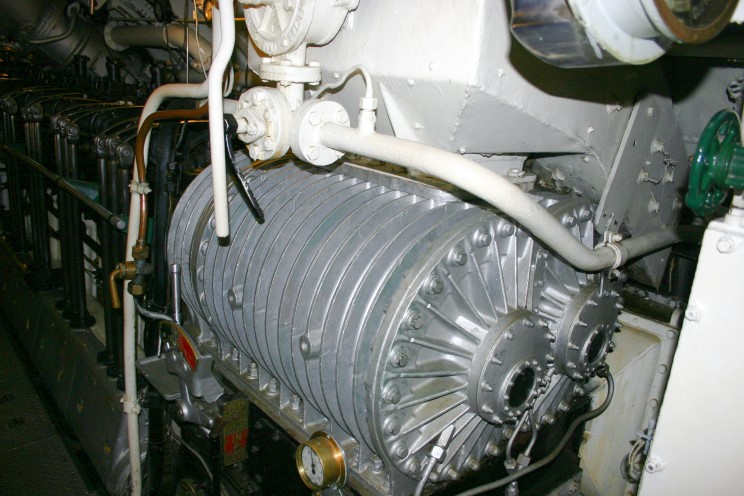

The supercharger for the starboard main engine on Alliance S-67.

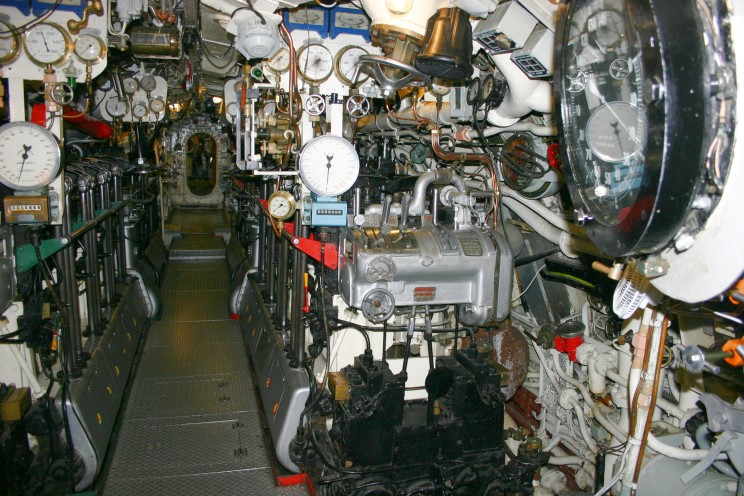

Looking aft at the main engine room from just inside the bulkhead door between the engine room and the control
room. The oblong metal object with handles mounted to the port main engine are the engine controls, the depth
gauge for the engine room is seen in the upper right corner (gauge with black ring).



The starboard main engine.

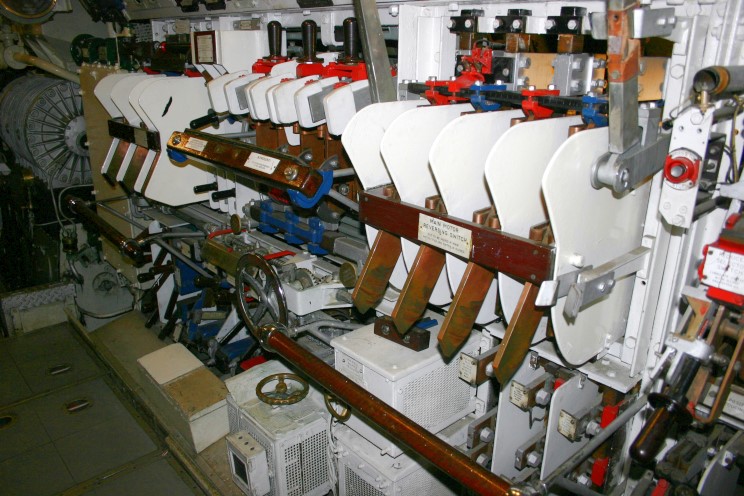

The main port motor controls in the motor room, located just aft of the engine room.

(All photos courtesy of Robert Edmonds)
© 2008 Robert Edmonds all rights reserved

Additional information for this page was provided by Petty Officer David Yeoman RN (ret.)
